docfx-pages

docfx for GitHub Pages

Deploy beautiful API reference to GitHub Pages with only 1 action. No unnecessary file upload and complicated docfx setup.

  • ✅ No .json, .yml and .csproj Files Required
  • ✅ Automatic HeaderDoc & TOC Generator
  • ✅ Unity Project & Editor Extension Supported

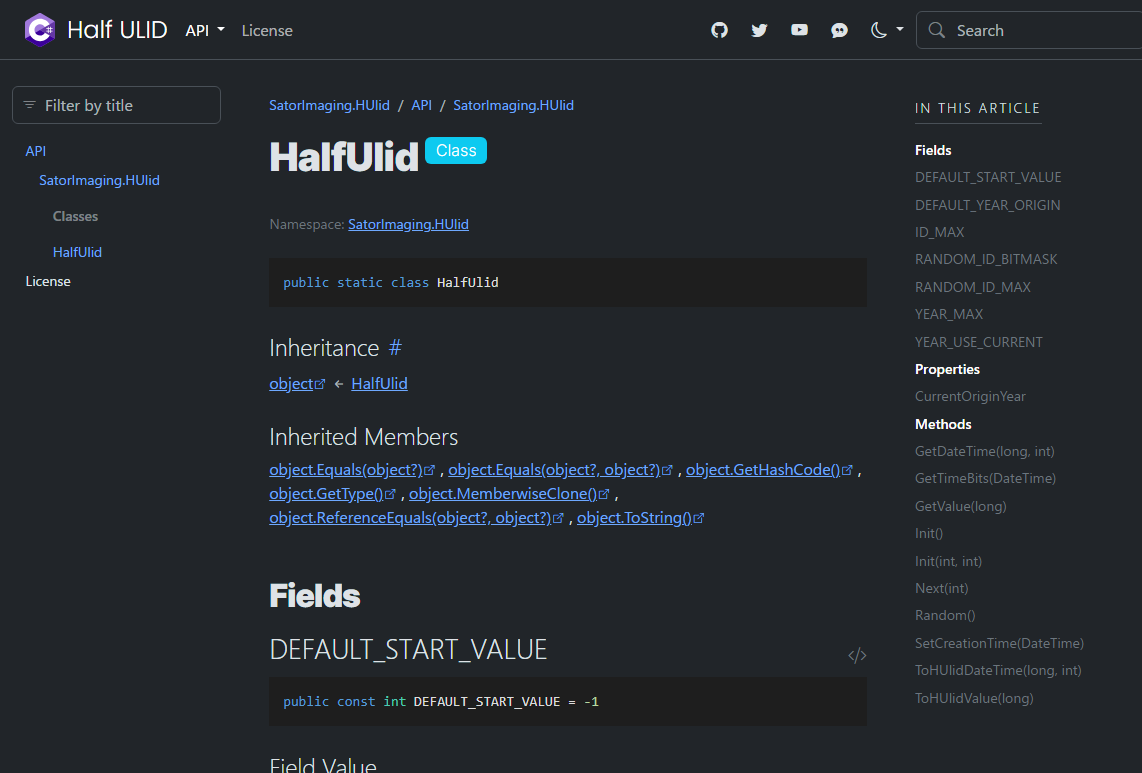

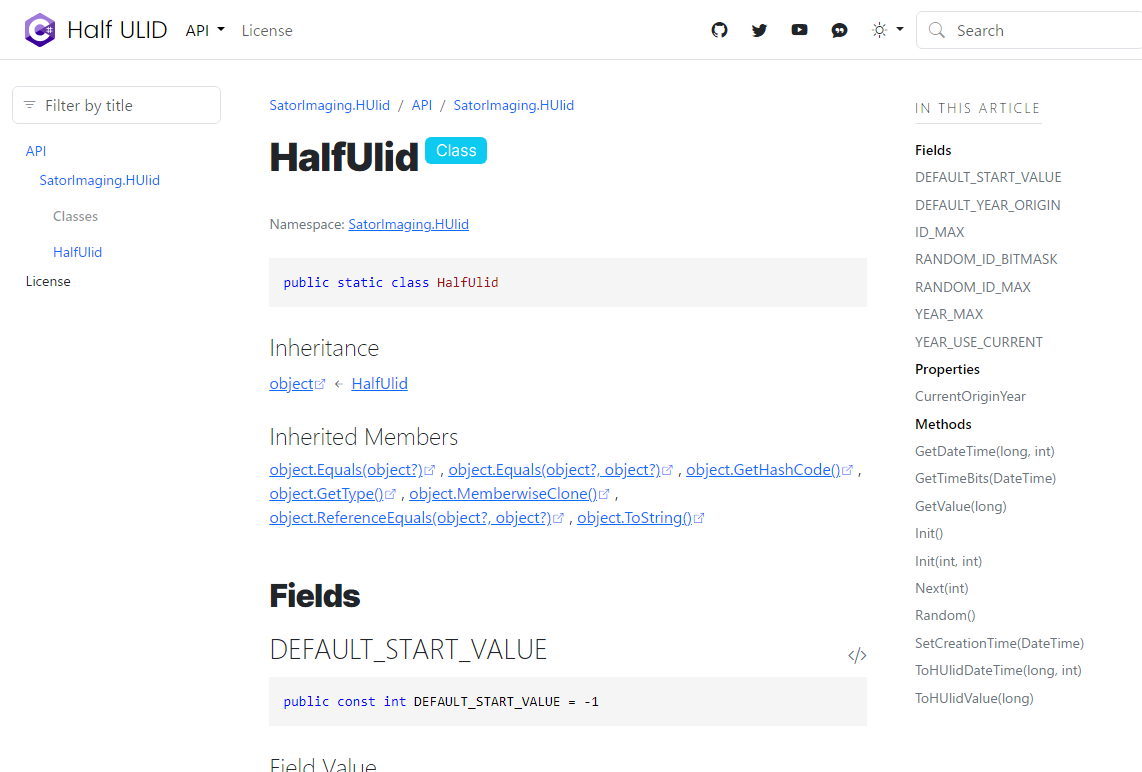

Light Theme Dark Theme
Light Theme Dark Theme

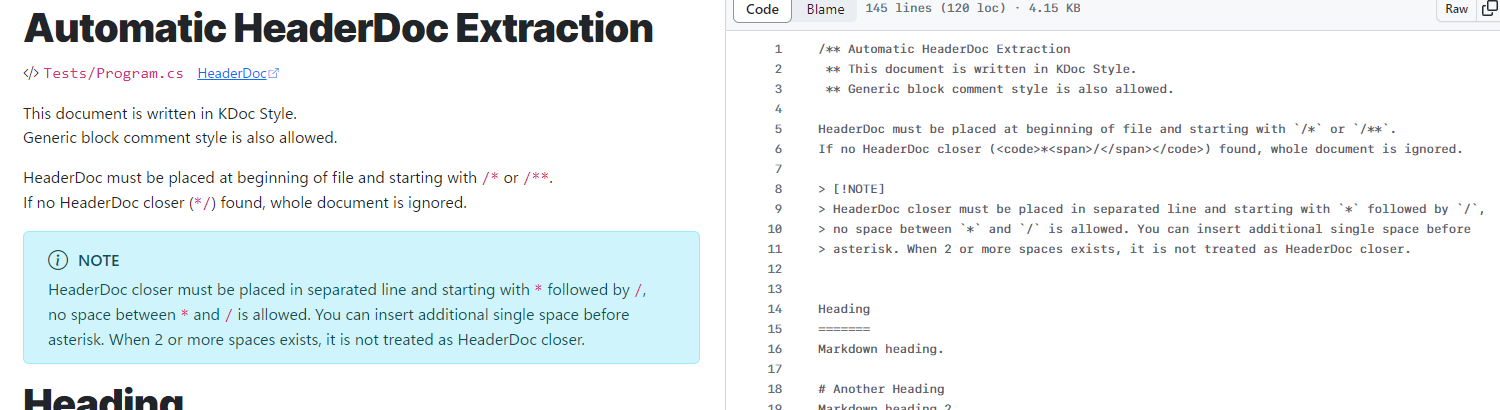

HeaderDoc Extraction

docfx-pages provides feature to convert block comment at the beginning of source code to Markdown document. Those documents are automatically included into the generated API reference site.

HeaderDoc

* When project contains only a single script, HeaderDoc won't be extracted.

Usage

- uses: sator-imaging/docfx-pages@v1
  id: deployment   # required to show url in actions result page.
  with:
    # required parameters
    app_name:    'docfx-pages'
    site_title:  'Deploy using sator-imaging/docfx-pages'
    site_footer: 'Copyright &copy; <em><big>HTML</big> Tags</em>'
    # optional parameters
    class_members: ...

Sample Outputs

Getting Started

Just enable GitHub Pages in repository setting and paste the code below.

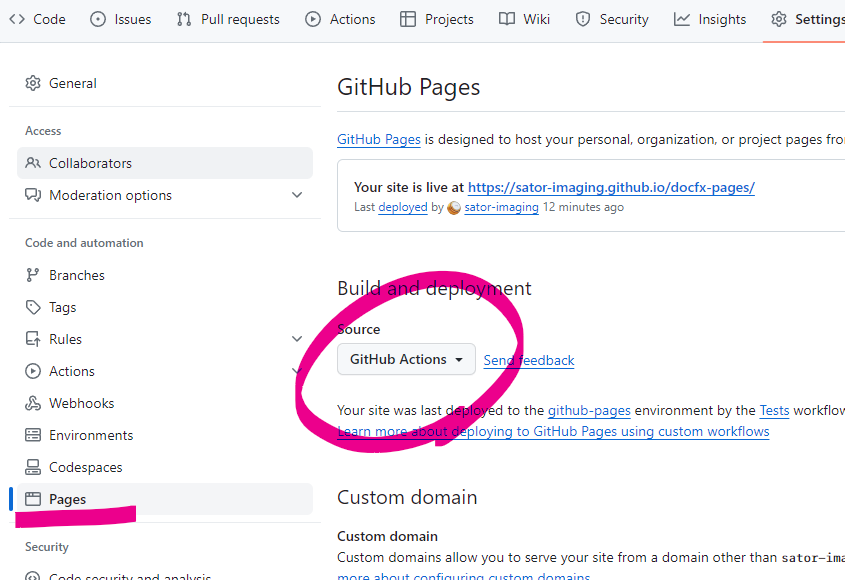

Repo Settings

GitHub Actions Source Code

Tip

👇 Here is boilerplate-included sample code for GitHub Pages by Actions.

name: docfx for GitHub Pages

on:
  # Runs on pushes targeting the default branch
  push:
    branches:
      - 'main'
      ##- 'releases/**'
  release:
    types: [published]

  # Allows you to run this workflow manually from the Actions tab
  workflow_dispatch:

# Sets permissions of the GITHUB_TOKEN to allow deployment to GitHub Pages
permissions:
  contents: read
  pages: write
  id-token: write

# Allow only one concurrent deployment, skipping runs queued between the run in-progress and latest queued.
# However, do NOT cancel in-progress runs as we want to allow these production deployments to complete.
concurrency:
  group: "pages"
  cancel-in-progress: false

jobs:
  # Single deploy job since we're just deploying
  deploy:
    environment:
      name: github-pages
      url: ${{ steps.deployment.outputs.page_url }}
    runs-on: ubuntu-latest


    #########################################
    ######  sator-imaging/docfx-pages  ######
    #########################################
    steps:

      # for extensibility, docfx-pages does NOT checkout your repository.
      # so you need to checkout manually prior to sator-imaging/docfx-pages.
      - name: Checkout
        uses: actions/checkout@v4


      # after checkout, you can checkout another repo, copy logo image or
      # other assets into '.docfx' folder to setup your own docfx environment.
      # note that images must be copied into '.docfx/images', 'images' or '.images'.


      ######  main  ######

      - uses: sator-imaging/docfx-pages@v1
        id: deployment   # required to show url in actions result page.
        with:

          # required options
          # NOTE: double-quote (") cannot be used, backquote (`) must be escaped (\`).
          app_name:    'Deploy Test'
          site_title:  'Deploy Test using sator-imaging/docfx-pages'
          site_footer: '<big>&times; Is HTML accepted?</big>'

          # optional
          class_members: 'separatePages'  # 'separatePages' or 'samePage'
          google_analytics: ''  # empty to disable
          define_symbols: ''  # additional preprocessor symbols separated by ';'

          # paths must be relative from .docfx folder. default value is used when not set.
          # note that url works but only in top page. see sample website for detail.
          ###site_logo:    '<logo>.svg'
          ###site_favicon: '<favicon>.svg'

          # advanced options
          # --> https://dotnet.github.io/docfx/docs/template.html?tabs=modern#custom-template
          # main.js
          # NOTE: double-quote (") cannot be used, backquote (`) must be escaped (\`).
          main_js: |
            export default {
                defaultTheme: 'light',
                showLightbox: (img) => true,
                iconLinks: [
                    {
                        icon: 'github',
                        href: 'https://github.com/sator-imaging',
                        title: 'GitHub'
                    },
                ],
            }

          # main.css
          # NOTE: double-quote (") cannot be used, backquote (`) must be escaped (\`).
          main_css: |

Advanced Usage

Full customize can be done by adding .docfx folder to your repository.

For example, add logo image to .docfx/images folder in your repository.

  • .docfx/images/<your-logo>.svg
  • .docfx/images/<your-favicon>.svg or .ico

then, set options in your GitHub Actions. Note that paths must be relative from .docfx folder.

- uses: sator-imaging/docfx-pages@v1
  with:
    site_logo:    'images/<your-logo>.svg'
    site_favicon: 'images/<your-favicon>.ico'
Note

Default resource folders: .docfx/images, images, or .images

Tip

You can prepare .docfx contents in your GitHub Actions instead of duplicating/uploading files in repository.

Builtin Assets

  • images/wikimedia-commons/logo-csharp-recolor.svg
    • C# logo file for site_logo and site_favicon
    • C# Logo
  • images/unity/made-with-unity.svg
    • Theme-aware SVG file for site_logo
    • Made with Unity

Technical Notes

  • toc.yml is automatically generated.
  • README or README.md is generated when doesn't exist.
  • README.md is used as fallback for index.md.
  • LICENSE or LICENSE.md document title is automatically set. (insert # at the beginning of first line)




Devnote

Tests

Due to GitHub Pages limitation, deploy action must be run on main branch.

Development branch has setted up to invoke main branch action indirectly by updating test tag. To do so, run the following command on dev branch to run tests.

  • git pull; git tag -f test; git push --tags -f

TODO

  • add docfx_metadata, docfx_build and docfx_filter options for easy customization.
    • currently, it can be achieved by adding .docfx folder and place files correctly.
